Introducing the new Ramblas. Mountain time, all the time.
TECHNICAL SPECIFICATIONS
General Info

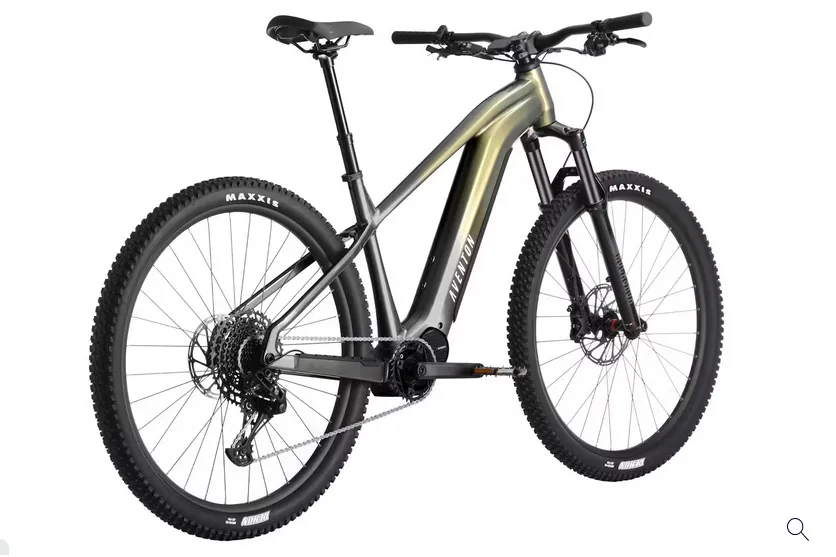

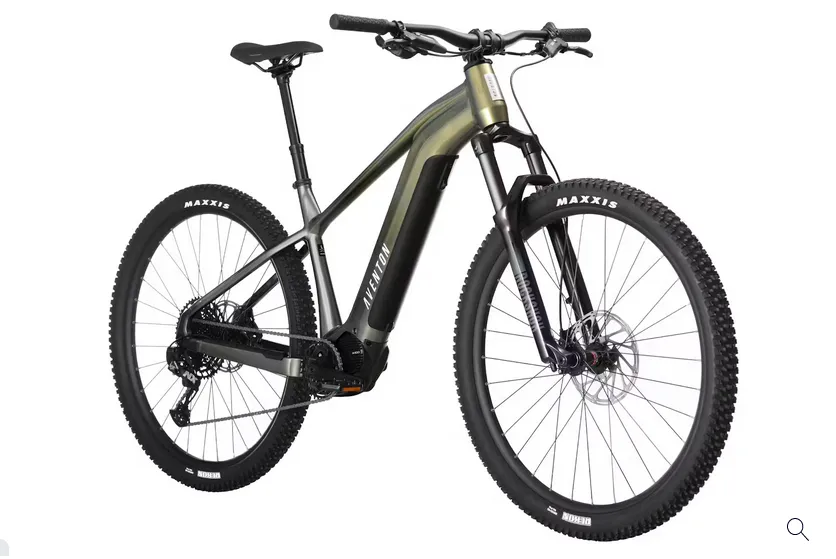

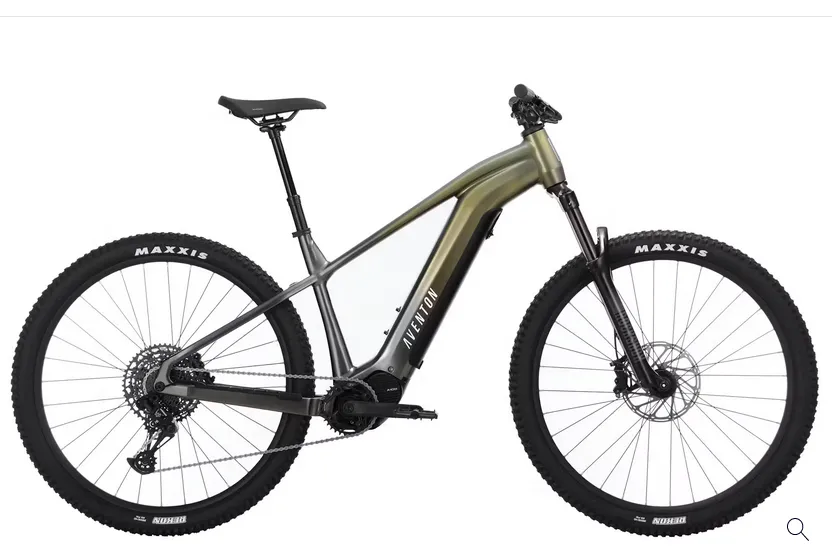

Model: Ramblas eMTB
Weight: 54lbs, size large, w/o pedals
Frameset
Fork: RockShox 35 Silver TK 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube
Frame: Single-Butted Aluminum Alloy
Wheelset
Hubs: 15x110 32H Front, 12x148 32H Rear
Rim: Double Wall Aluminum 32h Front & Rear
Spokes: Black Stainless 13 Gauge
Tires: (S) Maxxis Rekon 27.5x2.4", (M/L/XL) Maxxis Rekon 29x2.4"
Tubes: Butyl Rubber, Schrader Valve
Ebike System
Battery: Aventon 708 WH. 36V LG 21700 cells.

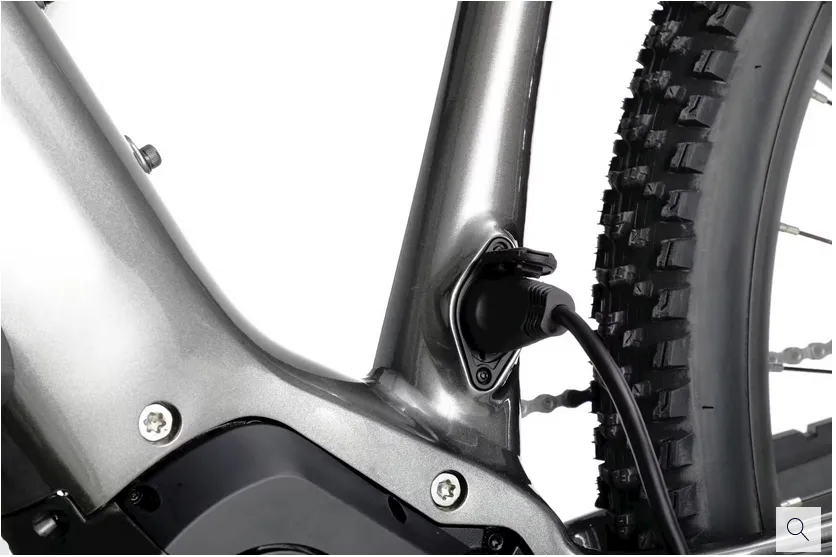

Charger: 42V 4A charger
Display: LCD Smart "Easy Read"

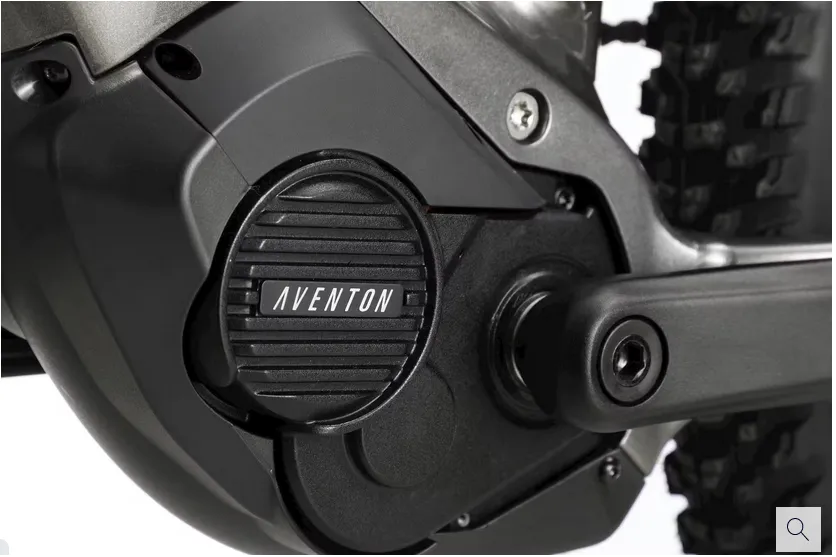

Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Brakes
Rear Brake Rotor: Sram 180mm 6 bolt
Front Brake Rotor: Sram 200mm 6 bolt
Brakes: Sram DB8 mineral 4 piston hydraulic disc brakes
Drivetrain

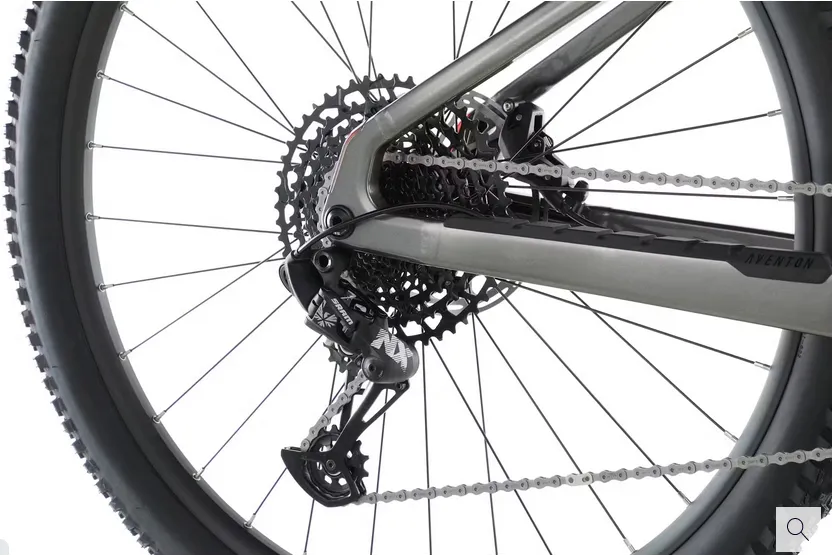

Rear Derailleur: Sram NX Eagle 1x12
Pedals: 9/16" Alloy Platform
Chainring: Sram Nx 34t

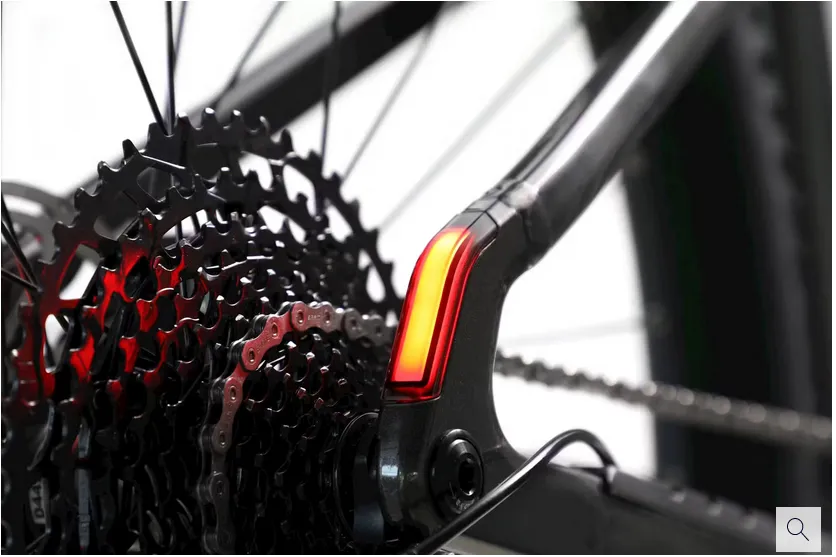

Cassette: Sram SX Eagle 1x12 11-50t
Shift Lever: Sram NX Eagle 1x12 single click
Cockpit

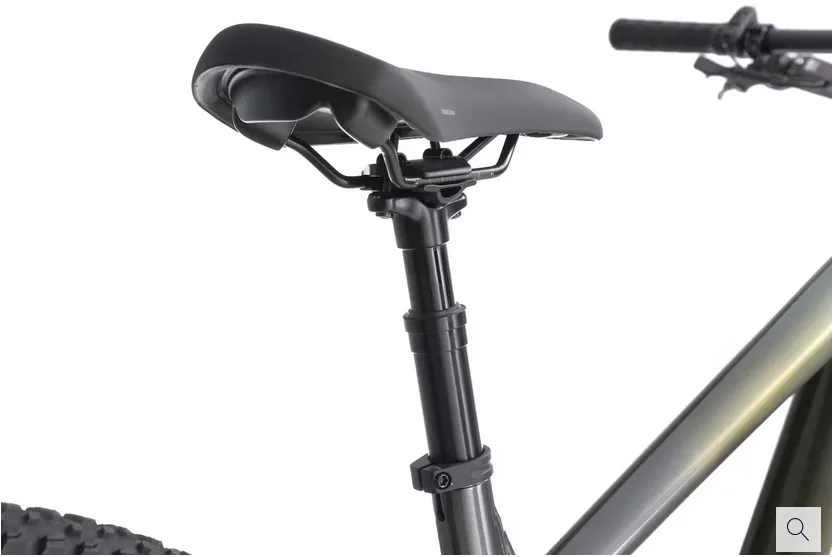

Seatpost: 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length

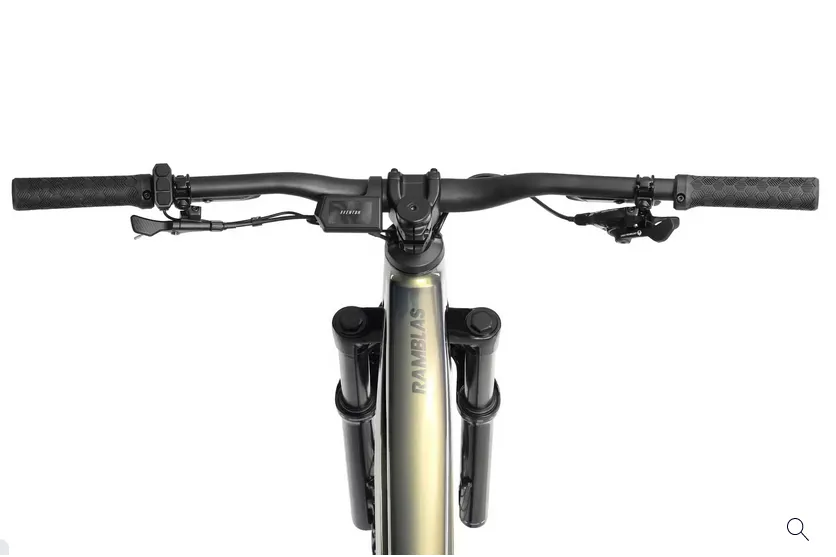

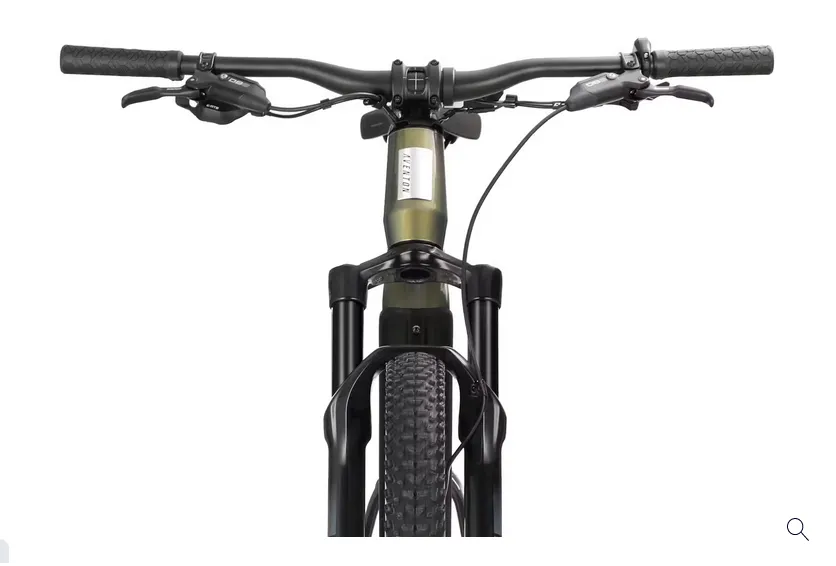

Handlebars: 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL

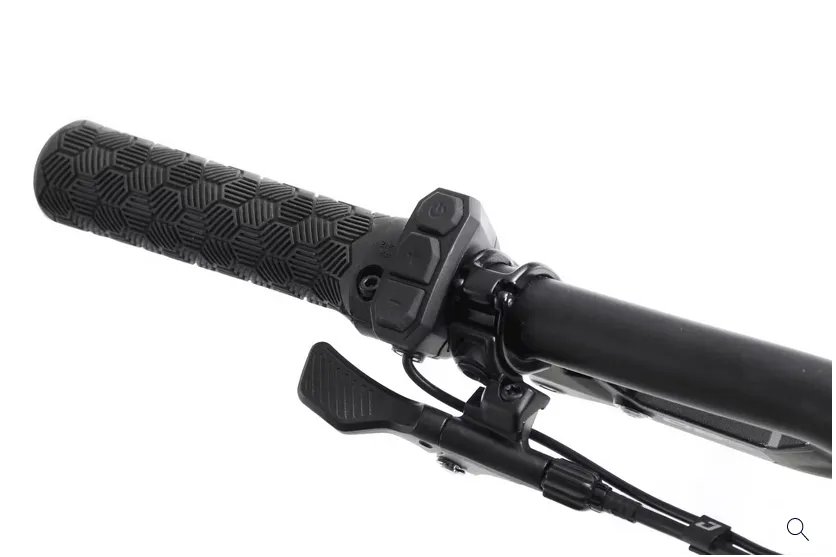

Grips: Lock on
Stem: 35mm Ø, 40mm length
Seat Clamp: Aventon 34.9mm
Included Accessories
Kickstand (Included in accessory box)
Technical Overview
Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.
